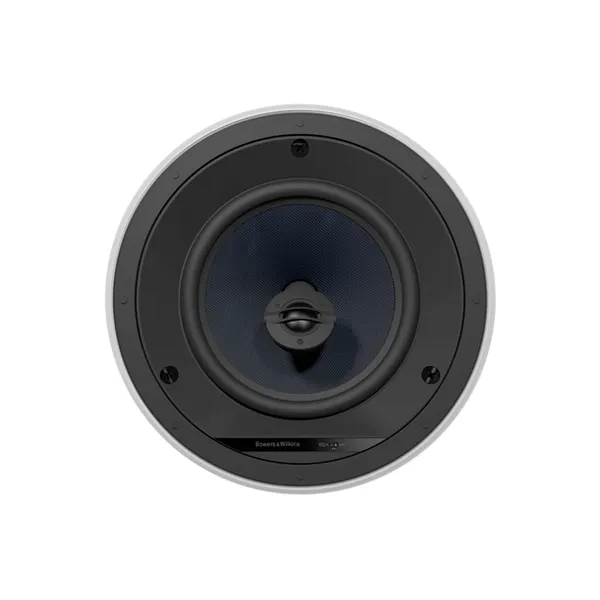

The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Kevlar® cone bass/midrange driver and an aluminium dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality.
The aluminium tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better offaxis response.
The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass.

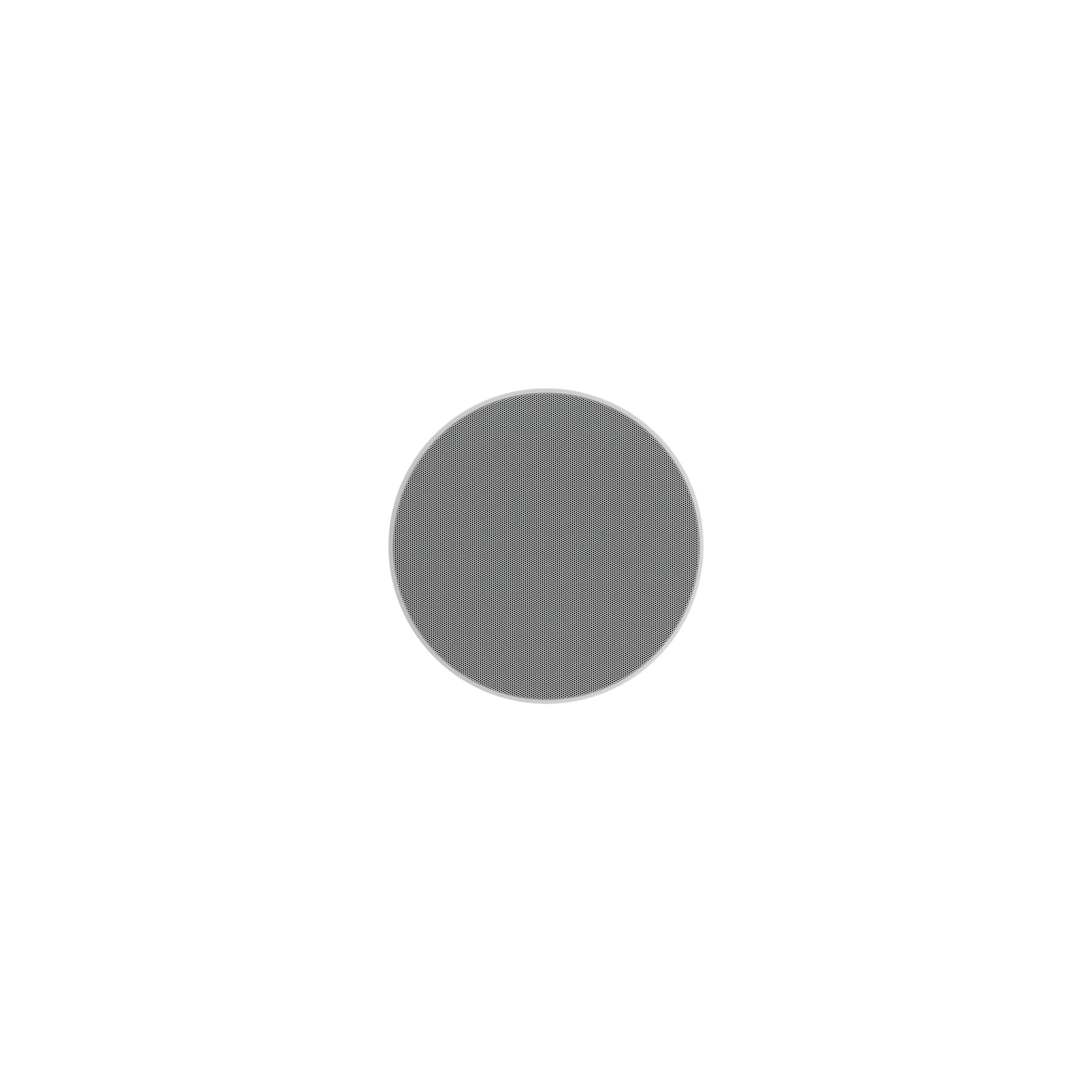

The blue Kevlar® cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
| Description | 2-way in-ceiling system |
| Drive Units | 1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø200mm (8in) blue Kevlar® cone bass/midrange |
| Frequency Range (-6dB) | 35Hz – 50kHz |
| Recommended Amp Power | 25 – 150w |
| Sensitivity SPL (2.83V, 1m) | 88dB |
| Impedance Nominal (min) | 8Ω (4.5Ω) |
| Frame diameter | 290mm (11.4in) |
| Cut-out diameter | 250mm (9.8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2in) |
